Identification

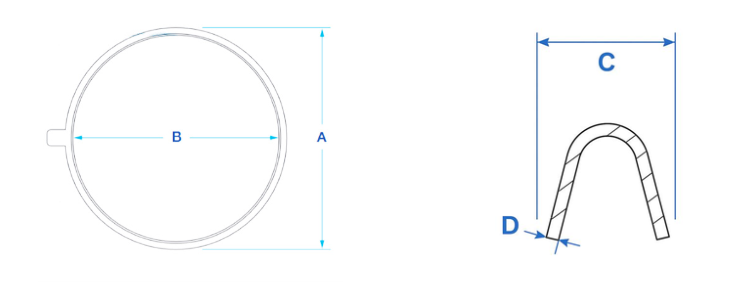

Gasket section diagram

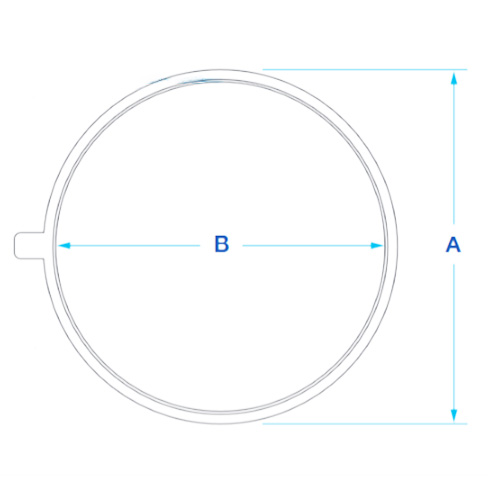

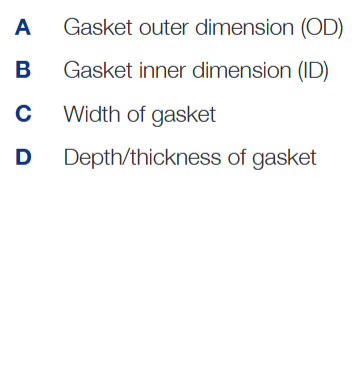

A
Gasket outer dimension (OD)
B
Gasket inner dimension (ID)

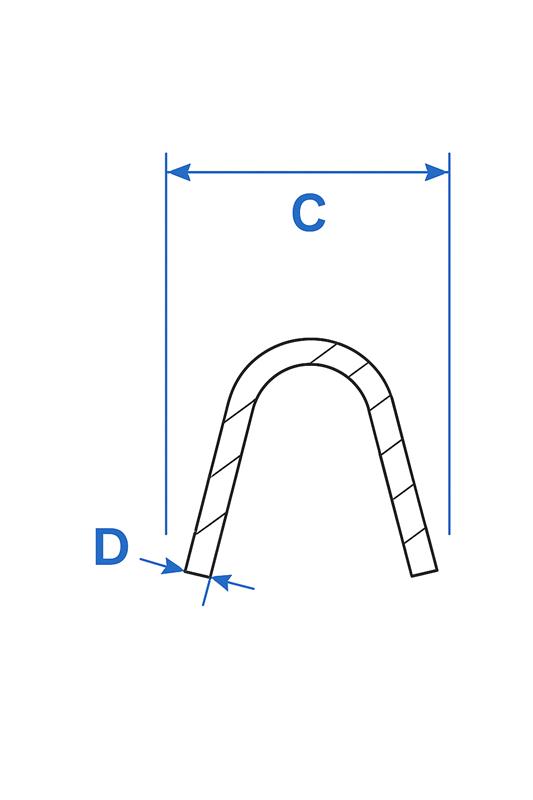

C
Width of gasket
D
Depth/thickness of gasket

Gasket 1100030790
Location
Seal Plate to Comp Cover
A - OD
121.00
B - ID
113.00
C - Width
0.50
D - Depth
0
Section
Flat
Gasket 1102012790
Location
Oil-Out Adaptor
A - OD
0.00
B - ID
0.00
C - Width
0.50
D - Depth
0
Section
Flat
Gasket 1102012792
Turbo Model
GT10-25Z
Location
Turbine Housing
A - OD
79.00
B - ID
0.00
C - Width
0.30
D - Depth
3.4
Section
C
Material
Inconel
Gasket 1102012793
Turbo Model
GT10-25Z
Location
Compressor Housing
A - OD
0.00
B - ID
0.00
C - Width
0.90
D - Depth
0
Section
Stepped
Material
Steel
Gasket 1102012794
Turbo Model
GT10-25Z
Location
Turbine Housing - Bypass Valve
A - OD
0.00
B - ID
0.00
C - Width
1.10
D - Depth
0
Section
Stepped
Gasket 1102015795
Turbo Model
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
106.10
B - ID
99.70
C - Width
0.30
D - Depth
1.2
Section
Stepped
Material
Steel
Gasket 1102015796
Turbo Model
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
106.00
B - ID
91.20
C - Width
0.30
D - Depth
1
Section
Stepped
Material
Steel
Gasket 1102015798
Turbo Model
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
115.20
B - ID
100.00
C - Width
0.30
D - Depth
0.8
Section
Stepped
Material
Steel
Gasket 1102015799
Turbo Model
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
115.20
B - ID
108.00
C - Width
0.40
D - Depth
0.8
Section
Stepped
Material
Steel
Gasket 1102017791
Location
Turbine Housing To Bypass Valve
A - OD
0.00
B - ID
0.00
C - Width
0.80
D - Depth
0
Section
Stepped
Material
Steel
Gasket 1102017795
Turbo Model
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
119.00
B - ID
113.00
C - Width
0.10
D - Depth
3.5
Section
C
Material
Steel
Gasket 1102017796
Turbo Model
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
122.00
B - ID
115.00
C - Width
0.30
D - Depth
0
Section
Flat
Material
Steel
